Aluminum Wire Mesh Manufacturers & Suppliers

Aluminum Wire Mesh Manufacturers & Suppliers

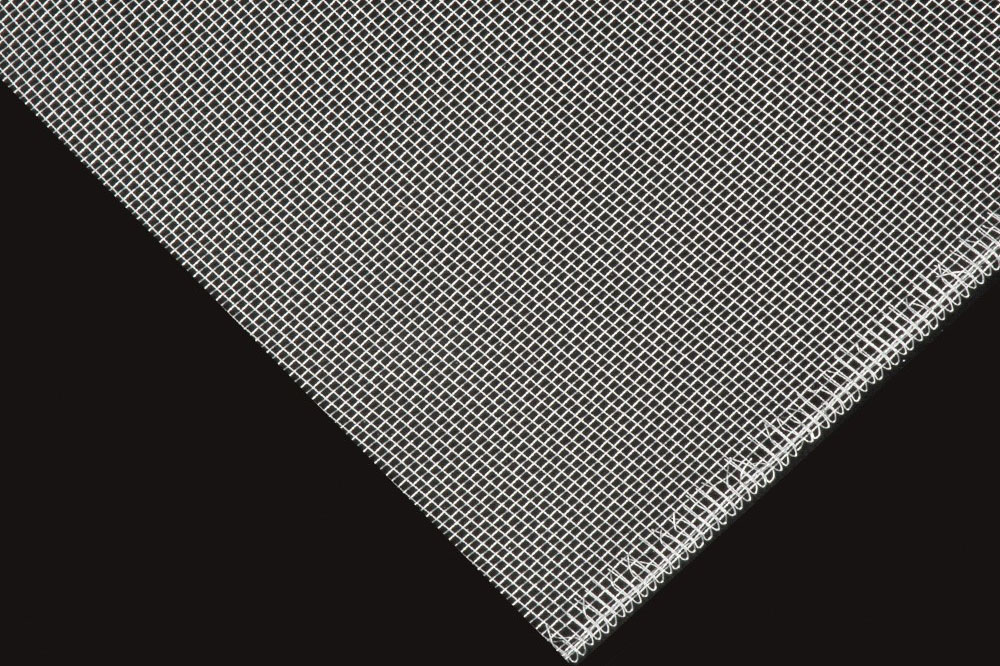

Aluminum wire mesh is a type of woven wire mesh made from aluminum wires. It is similar to stainless steel wire mesh but is specifically crafted from aluminum material. It’s often used in various applications due to its lightweight, corrosion resistance, and conductivity properties. The aluminum screen mesh is created by weaving aluminum wire together, forming a square opening pattern. This mesh can be used for insect screening, window screen, air filtration, and other industrial and commercial purposes

Brilliant Metals is one of leading aluminum wire mesh manufacturers & suppliers specializes in manufacturing high-quality aluminum mesh screen products for a wide range of applications. Whether it’s for architectural enhancements, industrial filtration, or residential uses, Brilliant Metals’ aluminum wire mesh combine reliability, and performance to meet the diverse needs of their customers.

Available Materials

Aluminum wire mesh screen exhibits corrosion resistance similar to stainless steel in typical environments. However, they are susceptible to rapid corrosion when exposed to alkaline solutions, hydrochloric acid, and hydrofluoric acid. Despite these limitations, aluminum mesh screen finds extensive use across diverse industries such as aerospace, automotive, marine, and applications requiring conductivity.

The composition of aluminum wire mesh screen materials includes alloys like 5052, 1350, 5056, and 6061. Each alloy offers specific properties suitable for different applications. For instance, 5052 aluminum alloy provides excellent strength and corrosion resistance, making it ideal for marine and structural uses. On the other hand, 6061 aluminum alloy is prized for its versatility, being employed in aerospace components and architectural elements.

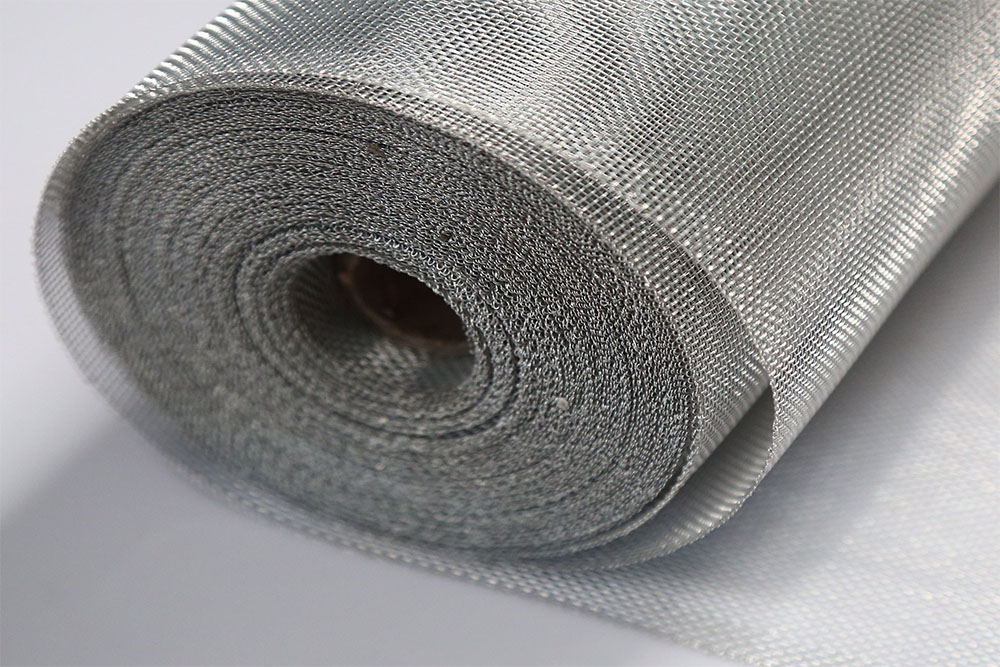

fine aluminium mesh roll — Aluminium Wire Mesh Roll

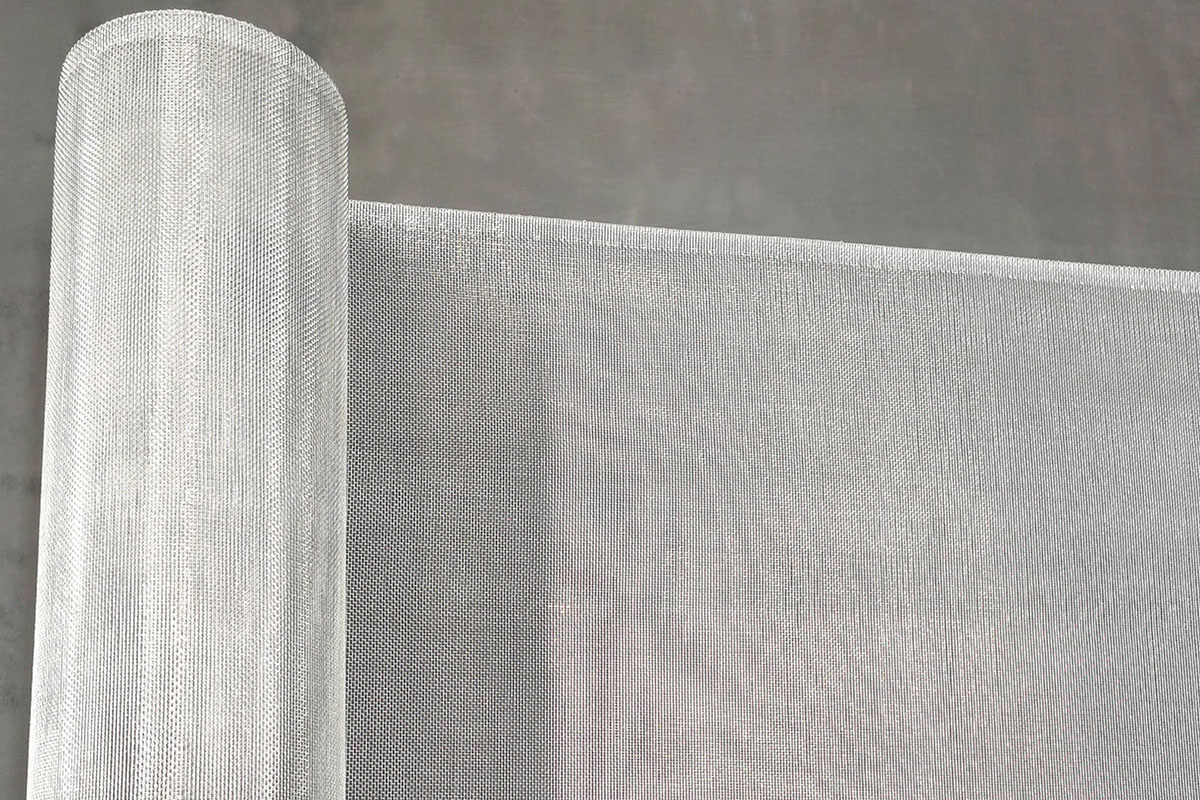

aluminum screen mesh — Aluminum Window Screen Mesh

Specifications of Aluminum Woven Wire Mesh

Aluminum Woven Wire Mesh Specifications
Item	Mesh	Wire Diameter (mm)	Width (m)	Length (m)
AWM01	12 × 12	0.28	0.6 – 1.5	30
AWM02	14 × 14	0.25	0.6 – 1.5	30
AWM03	16 × 14	0.25	0.6 – 1.5	30
AWM04	16 × 16	0.25	0.6 – 1.5	30
AWM05	18 × 16	0.25	0.6 – 1.5	30
AWM06	18 × 16	0.23	0.6 – 1.5	30
AWM07	18 × 16	0.22	0.6 – 1.5	30
AWM08	18 × 16	0.21	0.6 – 1.5	30
AWM09	18 × 18	0.25	0.6 – 1.5	30
AWM10	18 × 18	0.23	0.6 – 1.5	30
AWM11	18 × 18	0.22	0.6 – 1.5	100

Other specifications can also be customized according to customer requirements.
