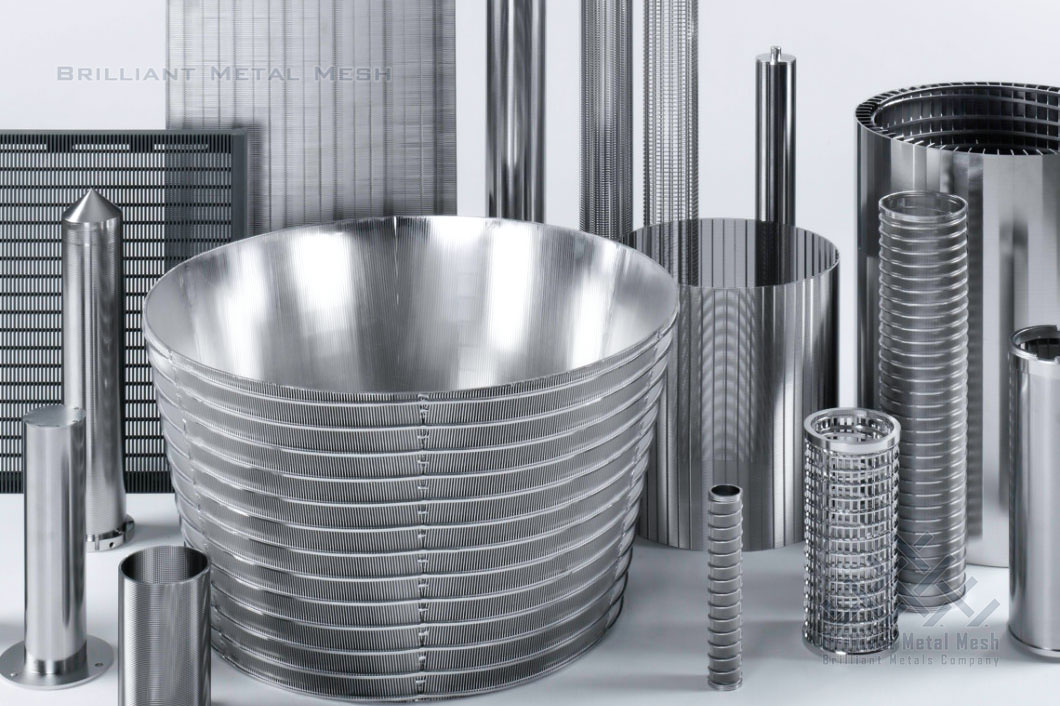

stainless steel wedge wire screen

Wedge Wire Screen Manufacturers & Suppliers

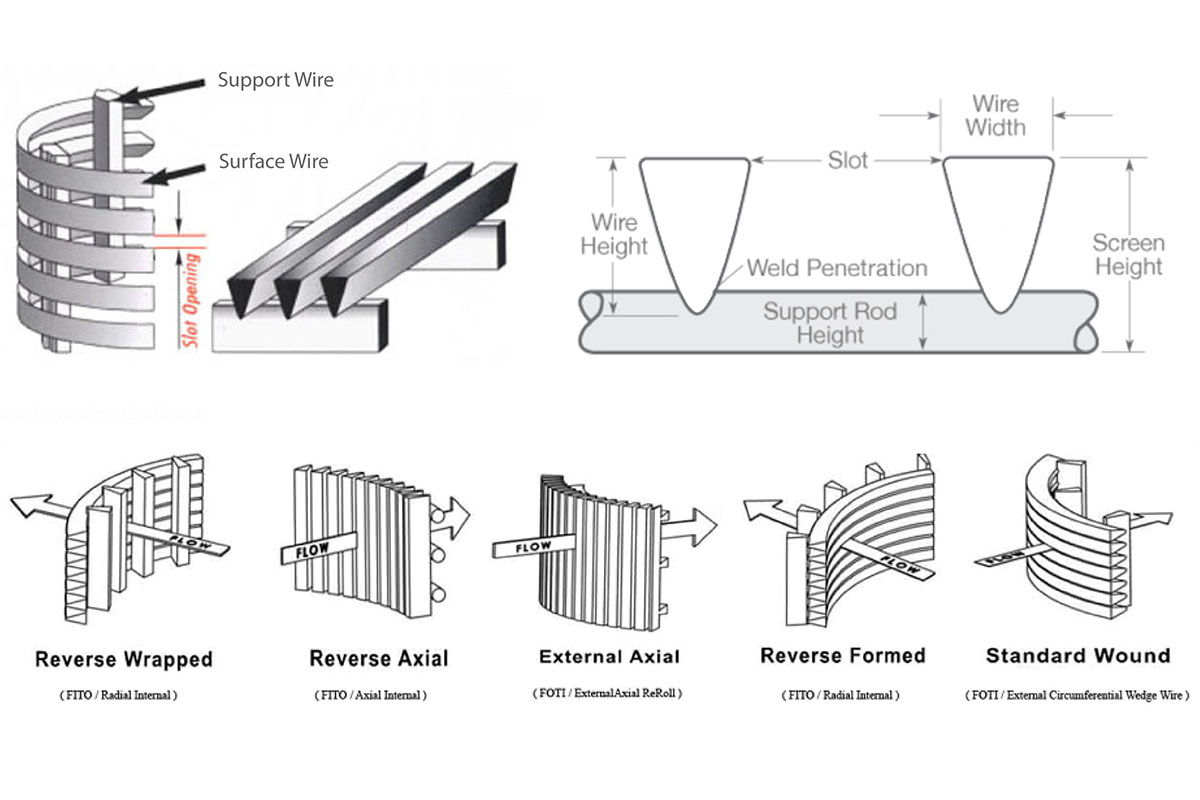

Wedge wire screen also called profile wire or V-wire screen, is a type of filtration or screening device made from V-shaped (wedge-shaped) wire that is welded to support rods to create a precise and uniform slot opening. This design creates a continuous slot opening that is highly efficient for filtering, screening, and sizing a variety of materials, allows for high strength, durability, and efficient filtering capabilities.

Brilliant Metals is a leading wedge wire screen manufacturer and supplier based in China. Renowned for their precision engineering and high-quality materials, Brilliant Metals produces durable and efficient wedge wire screens designed for various industrial applications, including water treatment, mining, food processing, and chemical industries.

Features of Wedge Wire Screens

  • V-Shaped Profile: The V-shaped wires create a narrow slot that widens toward the inside, which helps in reducing clogging and allows for more efficient flow.
  • High Strength and Durability: Made from robust materials like stainless steel, wedge wire screens are durable and resistant to abrasion and corrosion.
  • Precise Slot Openings: The slot sizes can be customized to meet specific filtration or screening requirements, ranging from very fine to coarse.
  • Self-Cleaning Capability: The design minimizes clogging and simplifies the cleaning process, which is essential for maintaining efficiency in continuous operations.
  • Versatility: Can be manufactured in various shapes and sizes, including cylindrical, flat, curved, and conical forms.

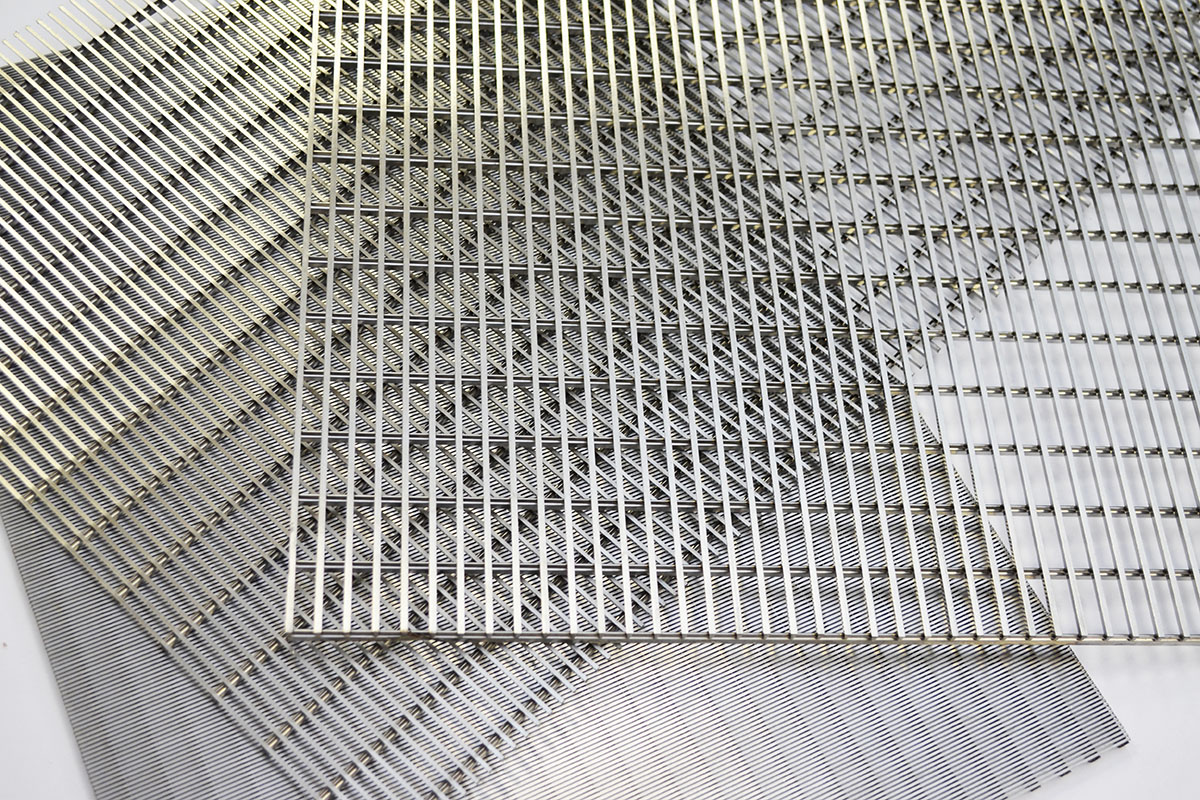

Wedge Wire Mesh Screen Panels
Panel

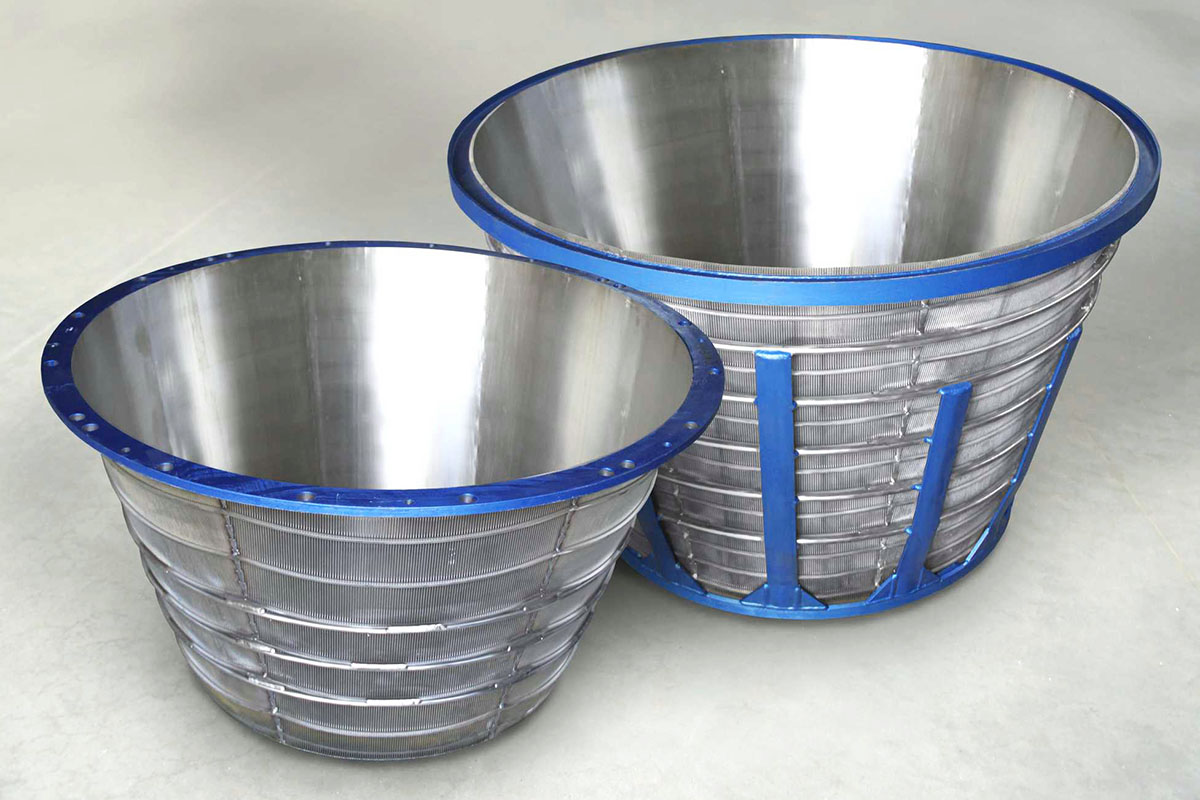

profile wire wedge wire basket

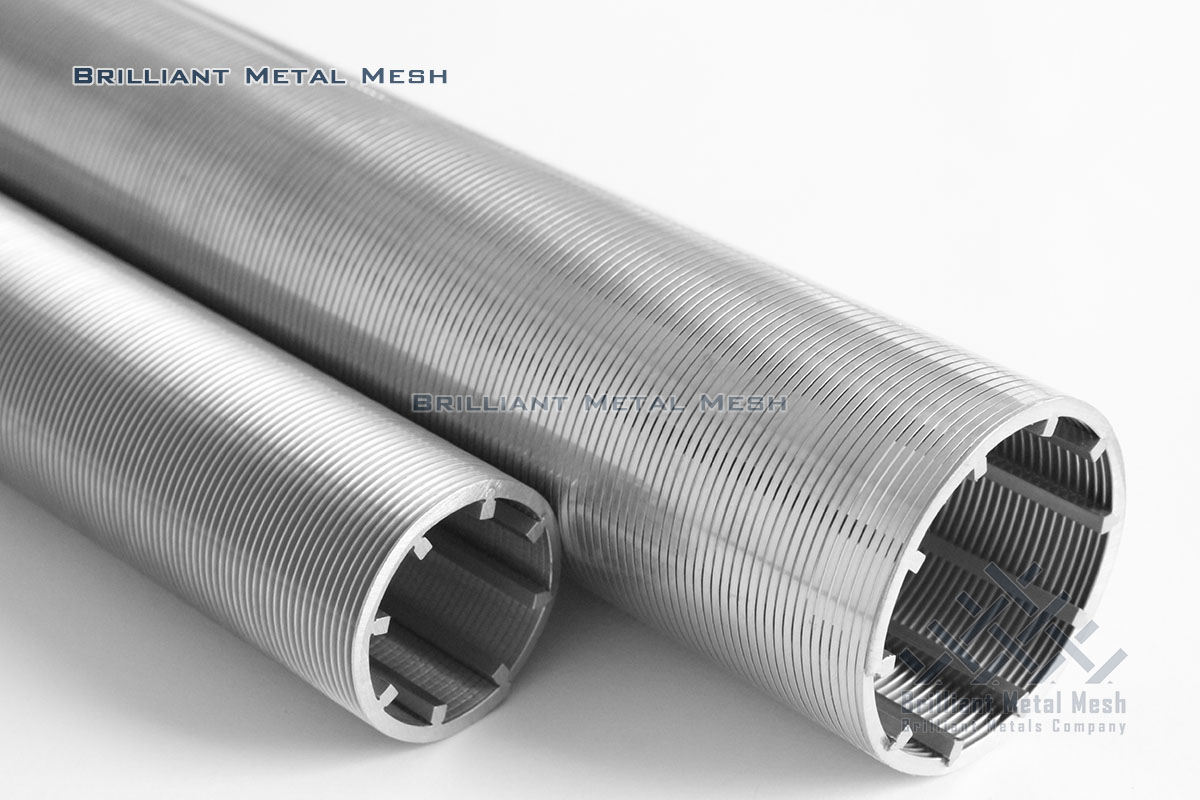

stainless steel wedge wire screen tubes
Tube

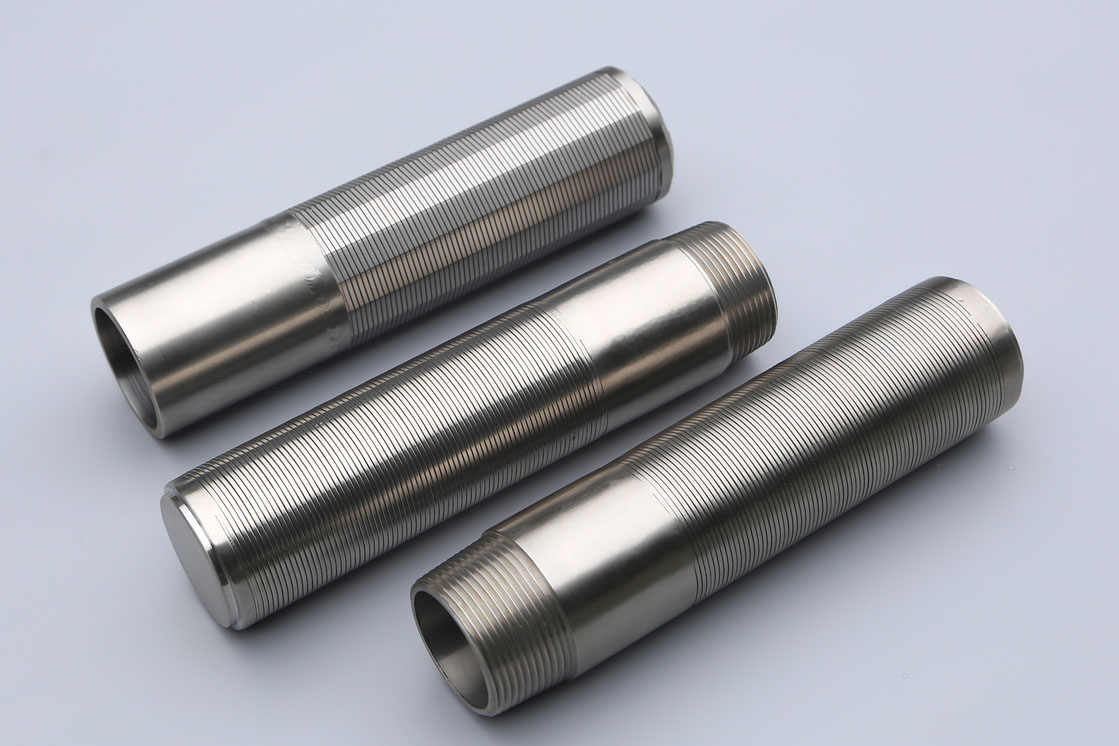

wedge wire filter
Wedge wire filter

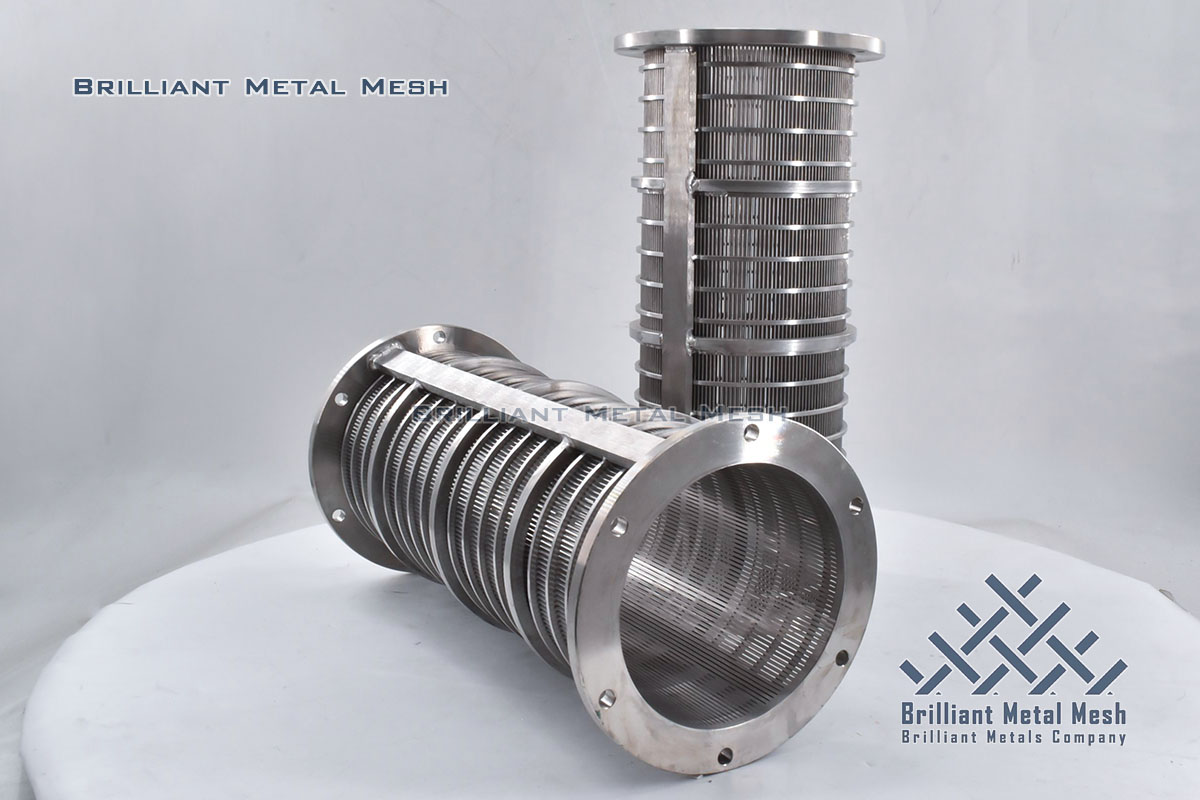

stainless steel wedge wire cylinder

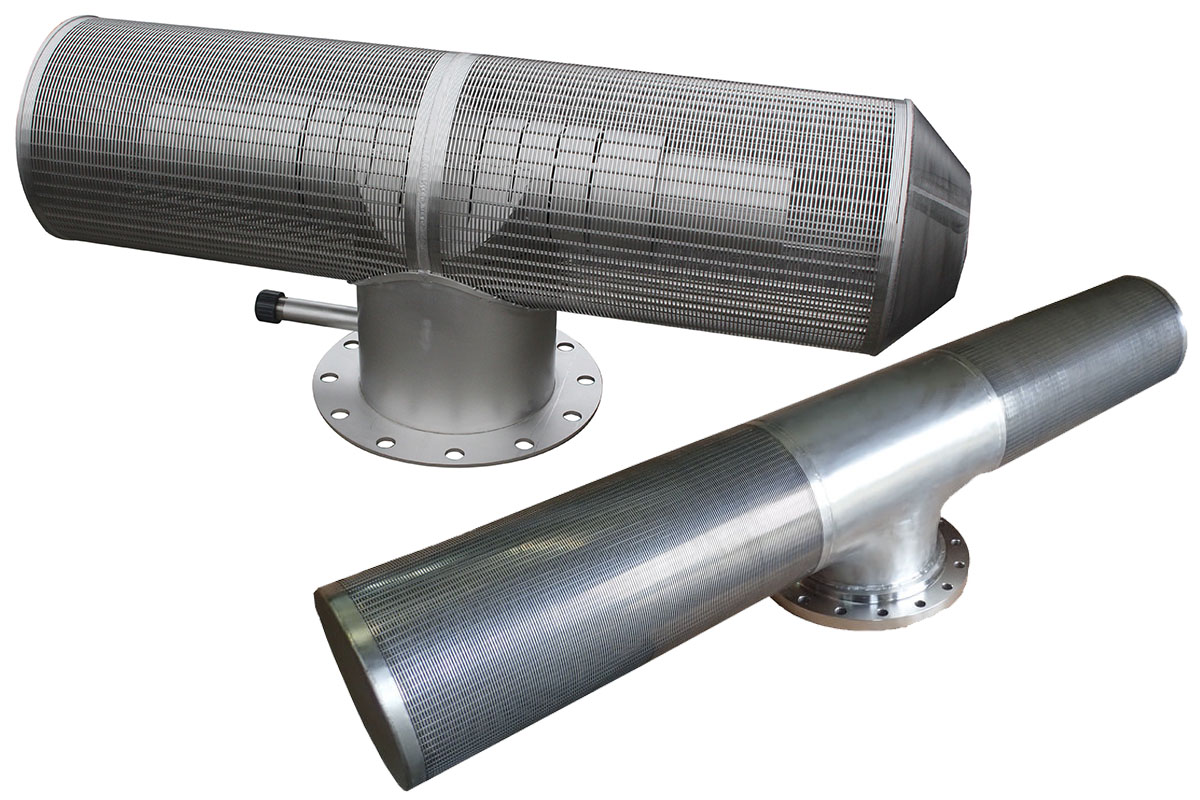

Wedge Wire Intake Screens
Intake Screens

Specifications

Specifications of Wedge Wire Screen Panels
Item Slot Size
(mm)		 Profile Wire Support Rod
Triangle/Wedge Wire
(mm)		 Triangle/Wedge Wire
(mm)		 Square Wire
(mm)		 Round Bar
(mm)		 Flat Bar
(mm)		 Water Drop Wire
(mm)
WWP01 0.02 0.45 × 1.3
0.5 × 1
0.5 × 1.2
0.65 × 1.3
0.75 × 1.5
1 × 2
1.2 × 2.3
1.5 × 2.5		 1 × 2
1.2 × 2.3
1.5 × 2.5
2 × 3		 1.5 × 2.5
2 × 2.3
2 × 3		 – – –
WWP02 0.05 – – –
WWP03 0.1 – – –
WWP04 0.15 1.5 × 2.5
1.8 × 2.5
1.8 × 3
1.8 × 3.7
2 × 3
2 × 4
2.2 × 3.5
2.2 × 4
2.2 × 4.2
3 × 5		 2 × 2.3
2 × 3
2.2 × 5.3
3 × 5
4 × 6
4.2 × 6.5
4 × 7.5		 – – –
WWP05 0.2 D4
D5
D6
D8
D10
D12		 – –
WWP06 0.25 1 × 2
1.2 × 2.3
1.5 × 2.5
1.8 × 2.5
1.8 × 3
1.8 × 3.7
2 × 3
2 × 4
2.2 × 3.5
2.2 × 4
2.2 × 4.2
3 × 5		 – –
WWP07 0.3 – –
WWP08 0.4 2 × 25
3 × 25
3 × 8
3 × 10
3 × 12
3 × 15
3 × 20
4 × 25		 D3.8 × 5.3
D5 × 6.5
D6 × 8
WWP09 0.5
WWP10 0.6
WWP11 0.7
WWP12 0.8 1.5 × 2.5
1.8 × 3.7
1.8 × 2.5
2 × 3
2 × 3.5
2 × 4
2.2 × 3.5
2.2 × 4
2.2 × 4.2
2.5 × 5
3 × 4.5
3 × 4.6
3 × 5
3 × 6
3.2 × 6.2
3.5 × 6
3.5 × 6.5
3.4 × 6.5
3 × 7
4 × 6
4 × 7
5 × 7
5 × 8		 1.5 × 2.5
1.8 × 3.7
1.8 × 2.5
2 × 3
2 × 3.5
2 × 4
2.2 × 3.5
2.2 × 4
2.2 × 4.2
2.5 × 5
3 × 4.5
3 × 4.6
3 × 5
3 × 6
3.2 × 6.2
3.5 × 6
3.5 × 6.5
3.4 × 6.5
3 × 7
4 × 6
4 × 7
5 × 7
5 × 8
WWP13 0.9
WWP14 1.0
WWP15 1.5 3 × 5
4 × 6
4 × 6.5
4 × 7.5
5 × 8
WWP16 2
WWP17 2.5
WWP18 3
WWP19 4
WWP20 5
WWP21 6
WWP22 7
WWP23 8
WWP24 9
WWP25 10

Other specifications also available in customization.

Applications

Stainless steel wedge wire screen designs for various industrial applications, including water treatment, mining, food processing, and chemical industries.

  • Water Treatment: Used in municipal and industrial water treatment plants for filtering and separating solids from liquids.
  • Mining and Mineral Processing: Employed in the screening and dewatering of minerals and ores.
  • Food and Beverage Industry: Used for filtering and sizing in the production of various food and beverage products.
  • Oil and Gas: Utilized in the extraction and processing of oil and gas for sand control, dewatering, and other filtration applications.
  • Pulp and Paper Industry: Used in the production process to remove impurities and ensure the quality of the final product.
  • Chemical Processing: Applied in various chemical processes for filtering and separating different substances.
